Evolution of turbojet engines to the technology level of today. • new concepts or technological breakthroughs are rare;. • advancements are rather due to. This project deals with researching, designing and building jet-engines. A simple turbojet engine was designed and construction was begun. The design was. Figure — Balloon example of jet propulsion theory. CHAPTER 1. JET ENGINE THEORY AND DESIGN. Every rating or specialty has a language of its own.
|Language:||English, Arabic, German|
|ePub File Size:||23.55 MB|
|PDF File Size:||10.16 MB|
|Distribution:||Free* [*Registration Required]|
Recalling our discussion in Chapter 2, the thermal efficiency of a jet engine propulsion Figure Turbojet engine and compressor-turbine blade diagram. The turbojet is an airbreathing jet engine, typically used in aircraft. It consists of a gas turbine .. Archived from the original (PDF) on 9 May Retrieved 𝗣𝗗𝗙 | In this research paper an attempt has been made to design and analyze a small turbojet engine using scrap automobile parts, turbocharger being the.
For Concorde less fuel was required to produce a given thrust for a mile at Mach 2. Aside from giving faster flight speeds turbojets had greater reliability than piston engines, with some models demonstrating dispatch reliability rating in excess of Pre-jet commercial aircraft were designed with as many as 4 engines in part because of concerns over in-flight failures.
Overseas flight paths were plotted to keep planes within an hour of a landing field, lengthening flights.
The increase in reliability that came with the turbojet enabled three and two-engine designs, and more direct long-distance flights. Non-UK jet engines built in the s and s had to be overhauled every 10 or 20 hours due to creep failure and other types of damage to blades. British engines however utilised Nimonic alloys which allowed extended use without overhaul, engines such as the Rolls-Royce Welland and Rolls-Royce Derwent ,  and by the de Havilland Goblin , being type tested for hours without maintenance.
British engines such as the Rolls-Royce Welland used better materials giving improved durability. The Welland was type-certified for 80 hours initially, later extended to hours between overhauls, as a result of an extended hour run being achieved in tests. JGEA turbojet engine from General Electric General Electric in the United States was in a good position to enter the jet engine business due to its experience with the high-temperature materials used in their turbosuperchargers during World War II.
The water increased thrust at the temperature limit, but prevented complete combustion, often leaving a very visible smoke trail. Allowable turbine entry temperatures have increased steadily over time both with the introduction of superior alloys and coatings, and with the introduction and progressive effectiveness of blade cooling designs.
On early engines, the turbine temperature limit had to be monitored, and avoided, by the pilot, typically during starting and at maximum thrust settings.
Automatic temperature limiting was introduced to reduce pilot workload and reduce the likelihood of turbine damage due to over-temperature. The stationary blades are the stators Turbojet animation Schematic diagram showing the operation of a centrifugal flow turbojet engine.
The compressor is driven by the turbine stage and throws the air outwards, requiring it to be redirected parallel to the axis of thrust Schematic diagram showing the operation of an axial flow turbojet engine. Here, the compressor is again driven by the turbine, but the air flow remains parallel to the axis of thrust Air intake[ edit ] An intake, or tube, is needed in front of the compressor to help direct the incoming air smoothly into the moving compressor blades.
Older engines had stationary vanes in front of the moving blades. These vanes also helped to direct the air onto the blades.
The air flowing into a turbojet engine is always subsonic, regardless of the speed of the aircraft itself. The intake has to supply air to the engine with an acceptably small variation in pressure known as distortion and having lost as little energy as possible on the way known as pressure recovery. The intake gains prominence at high speeds when it transmits more thrust to the airframe than the engine does. Compressor[ edit ] The compressor is driven by the turbine.
It rotates at high speed, adding energy to the airflow and at the same time squeezing compressing it into a smaller space.
Compressing the air increases its pressure and temperature. The smaller the compressor, the faster it turns. Turbojets supply bleed air from the compressor to the aircraft for the environmental control system , anti-icing, and fuel tank pressurization, for example.
The engine itself needs air at various pressures and flow rates to keep it running. This air comes from the compressor, and without it, the turbines would overheat, the lubricating oil would leak from the bearing cavities, the rotor thrust bearings would skid or be overloaded, and ice would form on the nose cone.
The air from the compressor, called secondary air, is used for turbine cooling, bearing cavity sealing, anti-icing, and ensuring that the rotor axial load on its thrust bearing will not wear it out prematurely. Supplying bleed air to the aircraft decreases the efficiency of the engine because it has been compressed, but then does not contribute to producing thrust.
Bleed air for aircraft services is no longer needed on the turbofan-powered Boeing Compressor types used in turbojets were typically axial or centrifugal.
Early turbojet compressors had low pressure ratios up to about Aerodynamic improvements including splitting the compressor into two separately rotating parts, incorporating variable blade angles for entry guide vanes and stators, and bleeding air from the compressor enabled later turbojets to have overall pressure ratios of or more. For comparison, modern civil turbofan engines have overall pressure ratios of or more. After leaving the compressor, the air enters the combustion chamber.
Free Download Jet Engine PPT and PDF Report
Combustion chamber[ edit ] The burning process in the combustor is significantly different from that in a piston engine. In a piston engine, the burning gases are confined to a small volume, and as the fuel burns, the pressure increases.
In a turbojet, the air and fuel mixture burn in the combustor and pass through to the turbine in a continuous flowing process with no pressure build-up. Instead, a small pressure loss occurs in the combustor.
Deshpande, who has always been an inspiration to us and our H. D, Prof. Deshapande, who has always motivated us to work hard. We would like to thank our seminar guide Prof. M S Patil who oversaw the Seminar work right from its inspection to its completion and showed a great amount of patience, listened to the problems we faced and constantly encouraged us. Thank you sir, we could not have completed this seminar without your help.
We also wish to thank all teaching and non-teaching staff and parents who have been supportive to us during the process of completing this seminar. We also thank our friends for giving us valuable suggestions.
To the people above, and all the other people who have done their bit in helping us, thanks to all.
A significant breakthrough in aviation industry took place with the advent of turbojet engines which were Rotary -Reaction Turbine Engines which were much efficient than Rotary piston engines and all other engines such as turbofan, turboprop, and turboshaft engines were developed as improvement over turbojet engines. Introduction 1 2 History 2 3. Primary components of turbojet engine.
Equations of Net thrust 8 5. After burner 9 6.
Thrust reversal 9 7. Cycle improvement 10 8. Merits and demerits of turbojet engines. Notable vehicles using turbojets. The first and simplest type of gas turbine is the turbojet. Turbojet engines had a significant impact on commercial aviation. Aside from being faster than piston engines, turbojets had greater reliability. Turbojets are the oldest kind of general-purpose jet engines and are reaction engines.

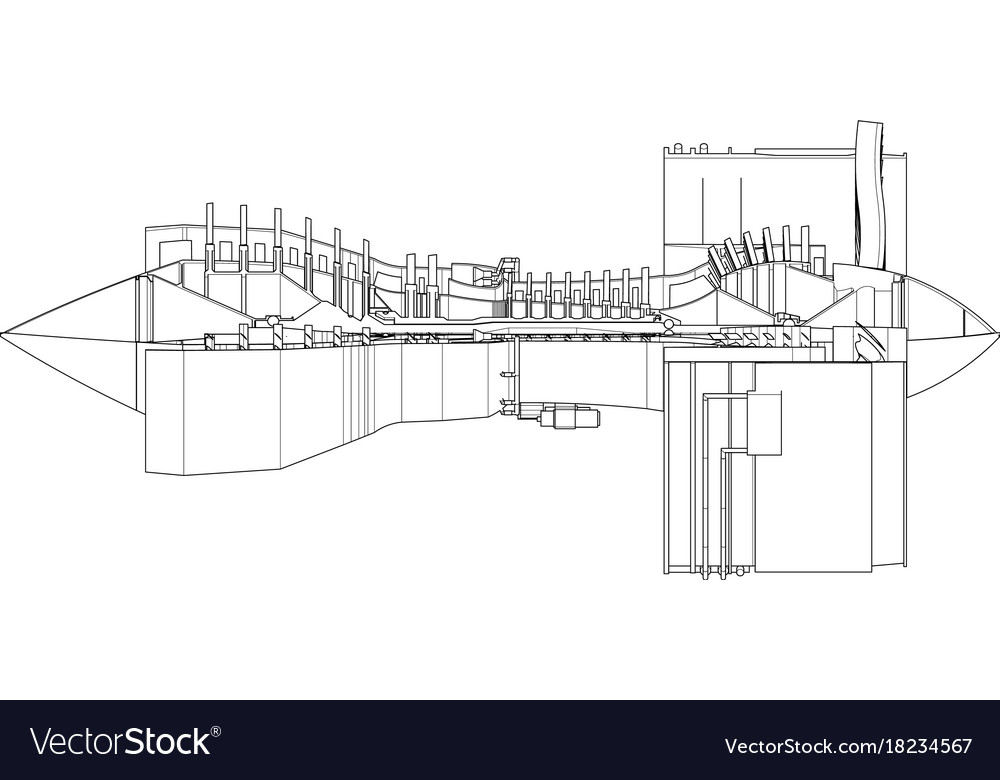

Turbojets consist of an air inlet, an air compressor, a combustion chamber, a gas turbine that drives the air compressor and a nozzle. The air is compressed into the chamber, heated and expanded by the fuel combustion and then allowed to expand out through the turbine into the nozzle where it is accelerated to high speed to provide propulsion. His engine was to be an axial-flow turbojet, but was never constructed, as it would have required considerable advances over the state of the art in compressors.
On 27 August the Heinkel He became the world's first aircraft to fly under turbojet power with test-pilot Erich Warsitz at the controls, thus becoming the first practical jet plane. The first two operational turbojet aircraft, the Messerschmitt Me and then the Gloster Meteor entered service towards the end of World War II in Early generation jet engines were pure turbojets, designed initially to use a centrifugal compressor as in the Heinkel HeS 3 , and very shortly afterwards began to use Axial compressors as in the Junkers Jumo for a smaller diameter to the overall engine housing.
They were used because they were able to achieve very high altitudes and speeds, much higher than propeller engines, because of a better compression ratio and because of their high exhaust speed. However they were not very fuel efficient.
One of the most recent uses of turbojet engines was the Olympus on Concorde. Concorde used turbojet engines because it turns out that the small cross-section and high exhaust speed is ideal for operation at Mach 2. Concorde's engine burnt less fuel to produce a given thrust for a mile at Mach 2. Fig 3. It is designed to be as efficient as possible at recovering the ram pressure of the air stream tube approaching the intake.
The air leaving the intake then enters the compressor.
The stators stationary blades guide the airflow of the compressed gases. The compressor rotates at very high speed, adding energy to the airflow and at the same time squeezing compressing it into a smaller space. Compressing the air increases its pressure and temperature.
Compression of inlet air is achieved in a centrifugal flow engine by accelerating air outward perpendicular to the longitudinal axis of the machine as shown in Fig 3. The axial-flow engine compresses air by a series of rotating and stationary airfoils moving the air parallel to the longitudinal axis as shown in Fig 3. The centrifugalaxial flow design uses both kinds of compressors to achieve the desired compression.
Bleeding air off decreases the overall efficiency of the engine, but the usefulness of the compressed air outweighs the loss in efficiency.
Jet Engine Basics.pdf
In a piston engine the burning gases are confined to a small volume and, as the fuel burns, the pressure increases dramatically. In a turbojet the air and fuel mixture passes unconfined through the combustion chamber. As the mixture burns its temperature increases dramatically, but the pressure actually decreases a few percent.
The arrangement of combustion chamber in turbojet engine is shown in Fig 3. The fuel-air mixture must be brought almost to a stop so that a stable flame can be maintained.Notable vehicles using turbojets. The first three-spool engine was the earlier Rolls-Royce RB.
Gas turbine turbojet turbofan - Rolls Royce - The Jet Engine.pdf
